Stepoc is a hollow concrete shuttering block system for retaining and structural walls. Laid dry and reinforced with steel and concrete, it provides a fast, cost-effective solution across a wide range of construction applications. We can normally dispatch Stepoc blocks within 1 week of an order being placed.
What is Stepoc?
Stepoc is a hollow, precast concrete block retaining wall system that’s laid dry. Its interlocking design allows vertical and horizontal reinforcement bars to be inserted, with concrete then pumped through the cavities to form a strong, reinforced wall with high lateral strength.
Applications of Stepoc
Retaining walls
Basement walls
Flood alleviation schemes
Swimming pools
Blast panels
Lift shafts
Platform edges
Quick build
The interlocking design speeds up installation and simplifies construction.
Cost-effective option
Reduced labour and skill requirements help lower overall project costs.
Robust and durable
Reinforced with steel and concrete for long-term stability and strength.
Dry and easy installation
Blocks are laid without the need for mortar, making installation straightforward.
Stepoc block calculators
Use our Stepoc block calculators to determine the quantity of blocks needed for your project.
Maximise your land use with Stepoc retaining wall solutions – a flexible, durable and cost-effective system.

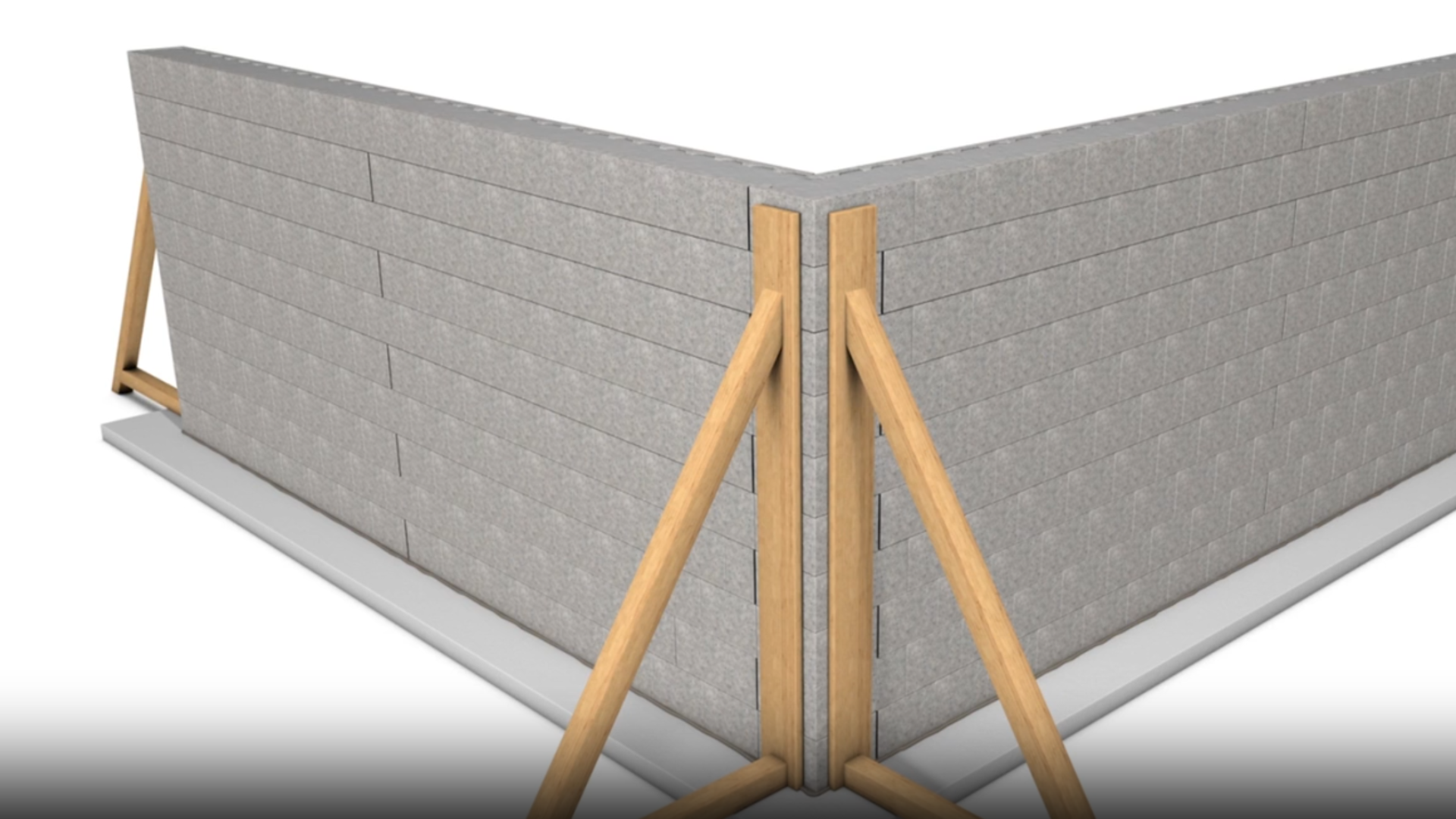

Take a look at this short video to see how easy it is to install our Stepoc block retaining wall system.
Stepoc block dimensions
Unit
Product code
Dimensions (mm) WxLxH
Weight (kg)
Pack size
m2 per pack
L2
STEP200L2FLI
200 x 400 x 225
18.5
40
3.6
L3
STEP200L3FLE
200 x 400 x 225
18.5
40
3.6
L4
STEP200L4HLI
200 x 200 x 225
9
80
3.6
Unit
Product Code
Dimensions (mm) W x L x H
Weight (kg)
Pack Size
m2 per pack
V2
STEP256V2FLI
256 x 400 x 225
19.8
32
2.88
V3
STEP256V3FLE
256 x 400 x 225
20
32
2.88
V5
STEP256V5TLI
256 x 133 x 225
8
96
2.88
V6
STEP256V6TLE
256 x 133 x 225
8.5
96
2.88
Unit
Product Code
Dimensions (mm) W x L x H
Weight (kg)
Pack Size
m2 per pack
Z2
STEP325Z2FLI
325 x 325 x 225
19.8
24
1.75
Z3
STEP325Z3FLE
325 x 325 x 225
20
24
1.75
Z4
STEP325Z4HLI
325 x 162.5 x 225
10.5
48
1.75
An Introduction to Structural Products CPD
This CPD covers the three main Retaining wall products offered – Stepoc, Slopeloc & Keystone. It provides information on each of the systems, the way they can be used and case studies of previous projects.
We have a wide range of BIM objects and are continuously developing our meaningful digital information, which you can then use for your Building Information Modelling (BIM) requirements.
A Stepoc retaining wall system combines dry-stacked, hollow concrete blocks with reinforced cast-in-place concrete. Reinforcement bars are installed into the blocks, and the interconnected cavities are filled with concrete to create a strong, reinforced retaining wall.
If installed correctly, a Stepoc retaining wall has a design life of 60 years. Due to precision manufacturing, Stepoc blocks are designed to withstand demanding environments and ensure long-term durability and performance.
Yes, you can use the Stepoc retaining wall system for a range of residential projects, including basements, garden retaining walls and flood defence. Explore our case studies to see how we’ve successfully implemented Stepoc systems across both residential and commercial projects.
There are 11.11 blocks per m² of wall for 200mm and 256mm Stepoc and 13.6798 blocks per m² for 325mm Stepoc.
The wall, once infilled with concrete, will provide a Thermal Conductivity (k value) of 1.60 W.m-1.K-1 (figure taken from CIBSE guide).
A Stepoc retaining wall system combines dry-stacked, hollow concrete blocks with reinforced cast-in-place concrete. Reinforcement bars are installed into the blocks, and the interconnected cavities are filled with concrete to create a strong, reinforced retaining wall.
If installed correctly, a Stepoc retaining wall has a design life of 60 years. Due to precision manufacturing, Stepoc blocks are designed to withstand demanding environments and ensure long-term durability and performance.
Yes, you can use the Stepoc retaining wall system for a range of residential projects, including basements, garden retaining walls and flood defence. Explore our case studies to see how we’ve successfully implemented Stepoc systems across both residential and commercial projects.
There are 11.11 blocks per m² of wall for 200mm and 256mm Stepoc and 13.6798 blocks per m² for 325mm Stepoc.
The wall, once infilled with concrete, will provide a Thermal Conductivity (k value) of 1.60 W.m-1.K-1 (figure taken from CIBSE guide).
Unfortunately, Ibstock does not offer this service. However, we carry out a take-off to determine the number of blocks. Get in touch with us for more information about how we can help with your Stepoc project.
The face of Stepoc blocks is close-textured and can be left exposed. However, in most applications, an additional finish is normally applied.
Yes, it is possible to construct curved structures using Stepoc. Please contact the Technical Department on 0333 234 3434 or email: [email protected]
Yes, it’s possible to construct non 90º corners with Stepoc. For further details, please contact the Technical Department on 0333 234 3434 or email: [email protected]
For a Stepoc wall, we suggest a maximum distance of 20m between movement joints. However, the final decision lies with the engineer designing the structure.
The following volumes of concrete are for guidance purposes: 200mm Stepoc 0.12m³/m², 256mm Stepoc 0.15m³/m², 325mm Stepoc 0.19m³/m².
We would recommend a maximum of 8 courses for 200mm Stepoc and 10 courses for 256mm and 325mm Stepoc. The final pour height will be determined by the construction sequence on site.
We would recommend the use of a concrete pump; however in restricted situations the use of other methods can be employed. It is important to use a fluid concrete mix with a minimum 150mm slump to allow the concrete to flow through the blocks.
Yes. We recommend that any free ends and corners of a Stepoc retaining wall be temporarily propped before filling to ensure the retaining wall system remains stable during construction.
Yes. Standard brick ties can be incorporated during construction, as Stepoc hollow block retaining walls use a 225mm block height that aligns with traditional brick and block coursing.
Yes, we would recommend that this be carried out before filling the wall. We suggest a hole being cut through the blocks and a PVC pipe or other preparatory system being employed.
Yes. We recommend speaking to a fixing specialist who will be able to determine the correct type of fixing for your situation and loading.
We would always recommend speaking with a waterproofing specialist before undertaking any product application. Ensure the method meets the guidelines set out by the NHBC or other warranty provider where applicable.
We would recommend that backfilling takes place approximately 7 days after the concrete has been poured into the Stepoc blocks, but the final decision lies with the engineer designing the scheme.
For more information on our Stepoc blocks, please refer to our brochure (page 54). Use our Stepoc block calculators to see how many are required for your project. At Ibstock, there is no minimum order, so you can order exactly what you require.
Yes, we have dedicated and experienced stockists that hold blocks on the ground for immediate order and delivery. Find your nearest stockist using our online Stockist Locator tool.
No.
Get in touch
Get in touch with us today to find out more about Stepoc blocks, for project advice, or to share feedback.
